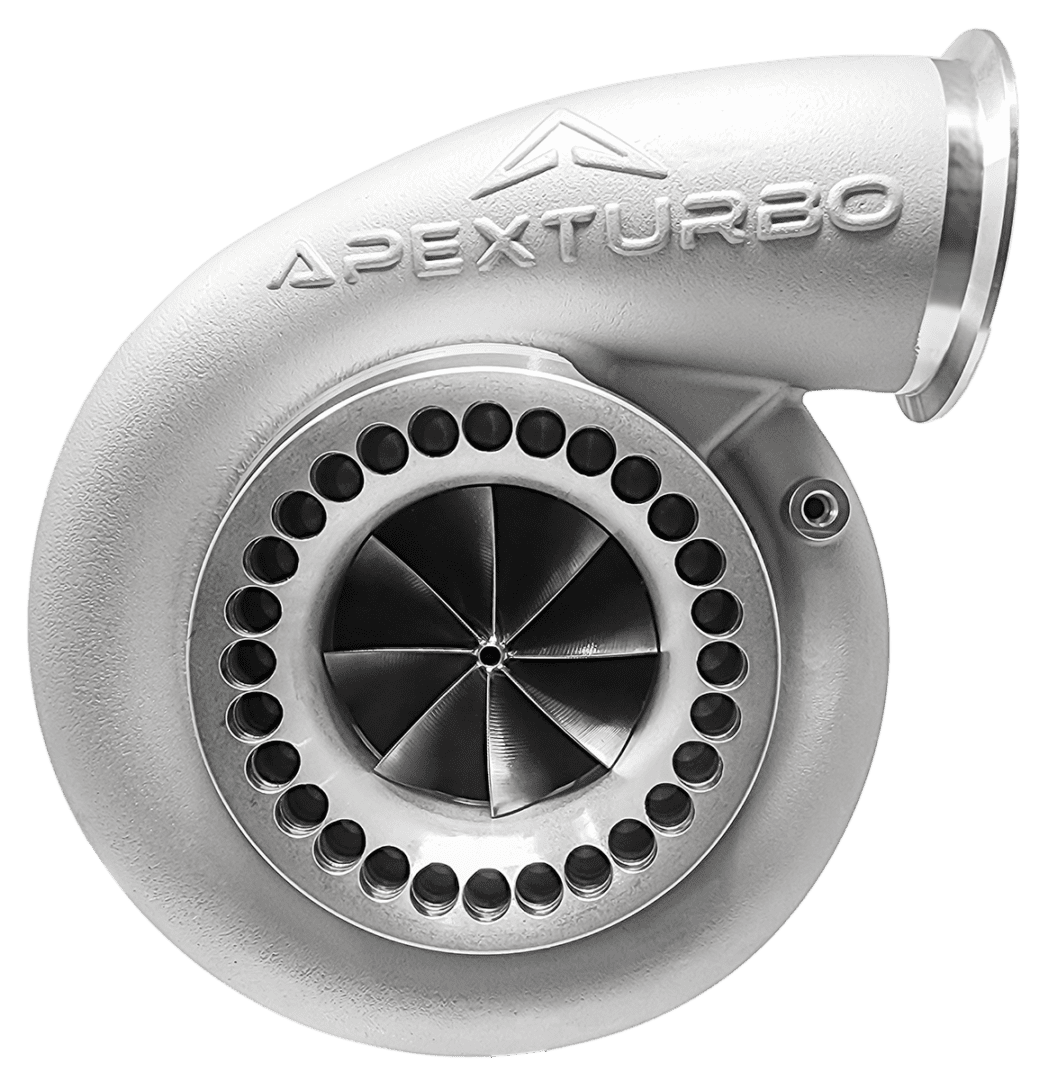

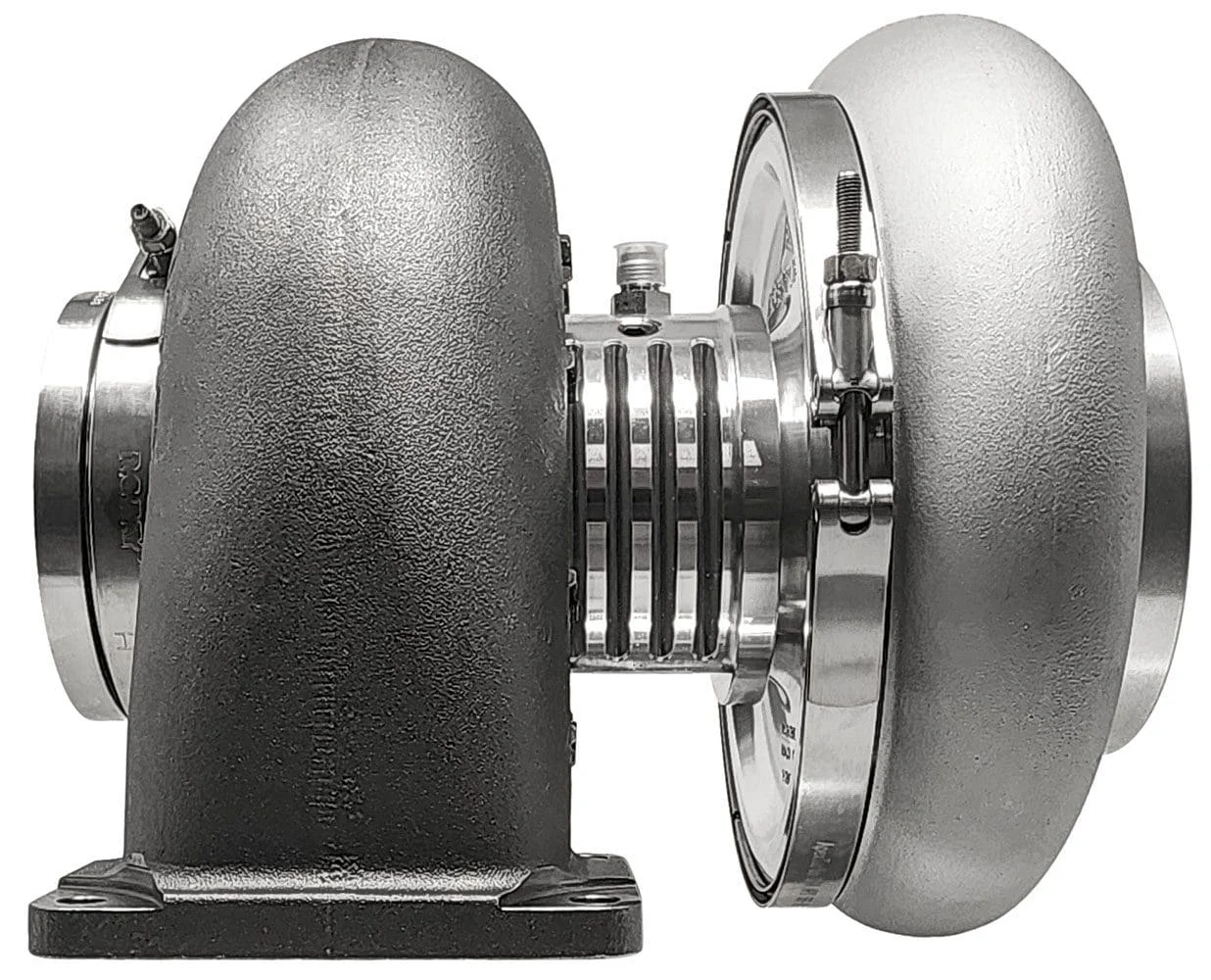

APX 9208

Dyno and drag strip proven design featuring a 92 mm compressor wheel paired with a 108 mm turbine wheel.
This T6 frame turbo is equipped with our patented triple ball-bearing design along with the Dual Apex Wheel™ Technology.

Specifications

Compressor Wheel

• 91.9 mm inducer
• 141.2 mm exducer

Turbine Wheel

• 113.0 mm inducer
• 107.8 mm exducer

Options

Turbine Housings available

T6 undivided

• 1.00 A/R
• 1.14 A/R
• 1.28 A/R
• 1.40 A/R
• 1.54 A/R

Stainless Steel V-band

• 1.28 A/R

*The option highlighted in red is the most common housing choice.We recommend this A/R.
