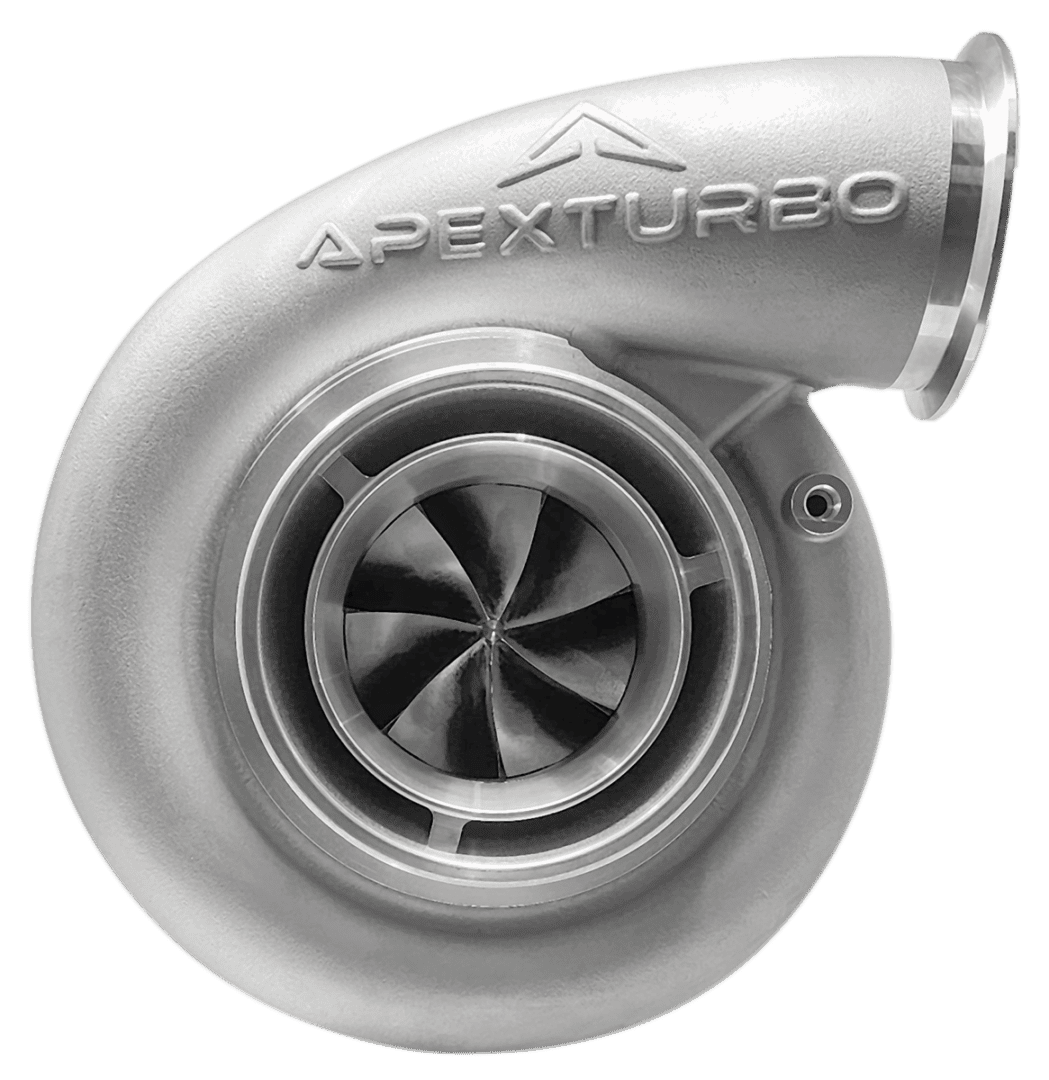

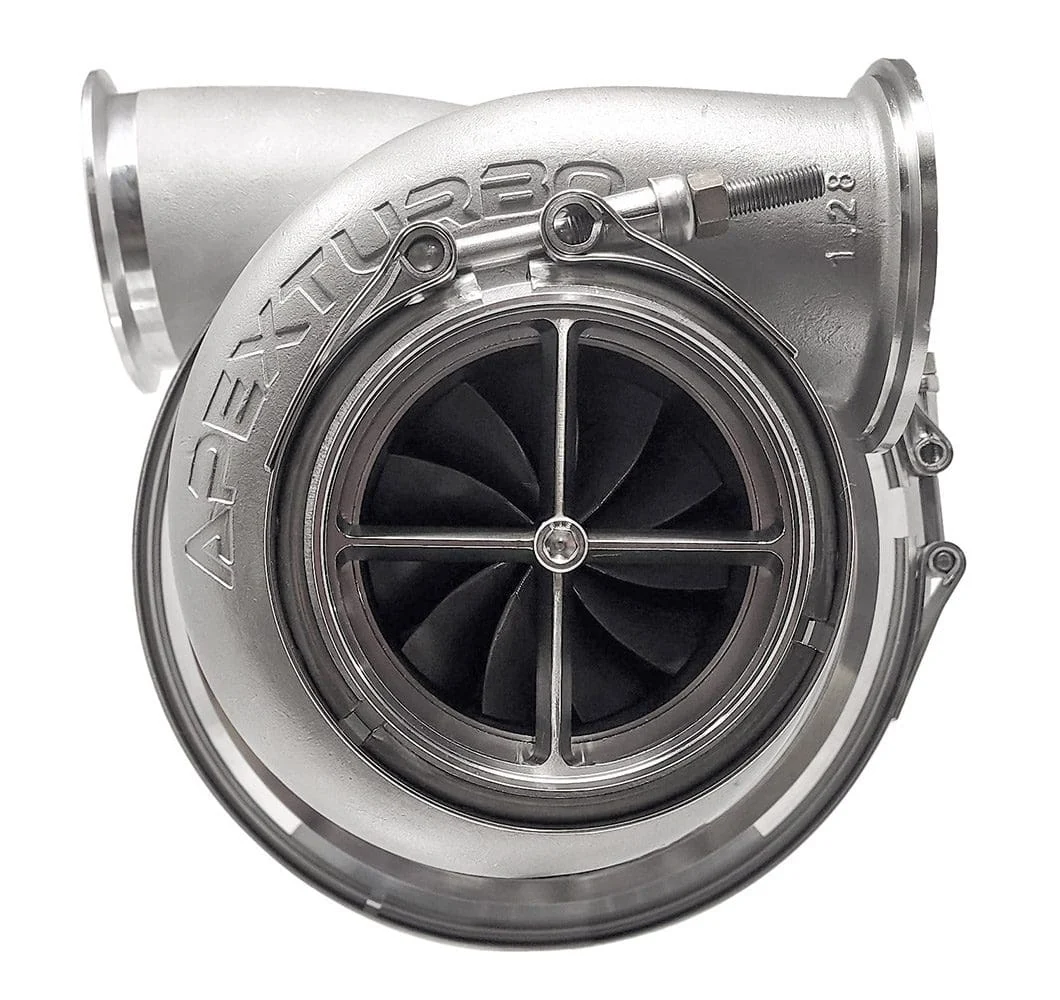

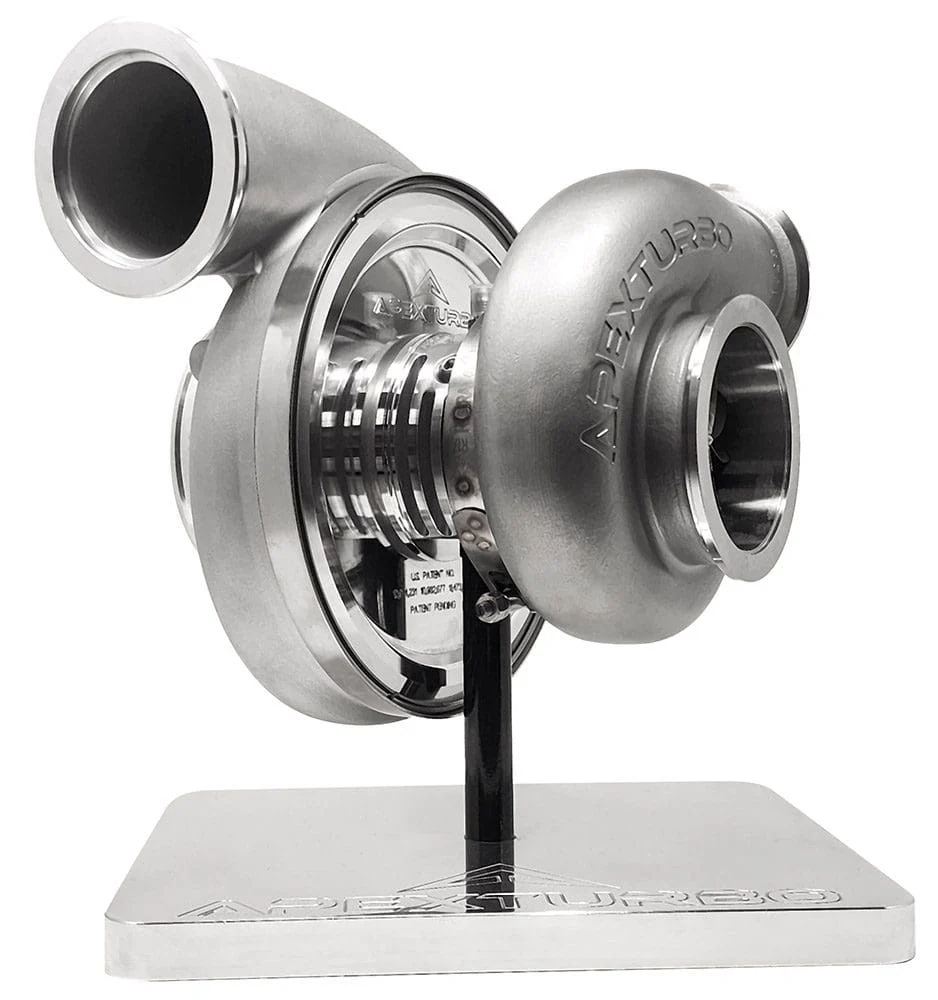

APX 8688

Dyno and drag strip proven design featuring a 85.9 mm compressor wheel paired with 88 mm turbine wheel.
This T4 frame turbo is equipped with our patented triple ball-bearing design along with the Dual Apex Wheel™ Technology.

Specifications

Compressor Wheel

• 85.9 mm inducer
• 111.8 mm exducer

Turbine Wheel

• 88.9 mm inducer
• 87.6 mm exducer

Options

Turbine Housings available

T4 divided

• 0.98 A/R
• 1.15 A/R
• 1.28 A/R

T4 undivided

• 1.14 A/R
• 1.27 A/R

Stainless Steel V-band

• 1.28 A/R

*The option highlighted in red is the most common housing choice.We recommend this A/R.
