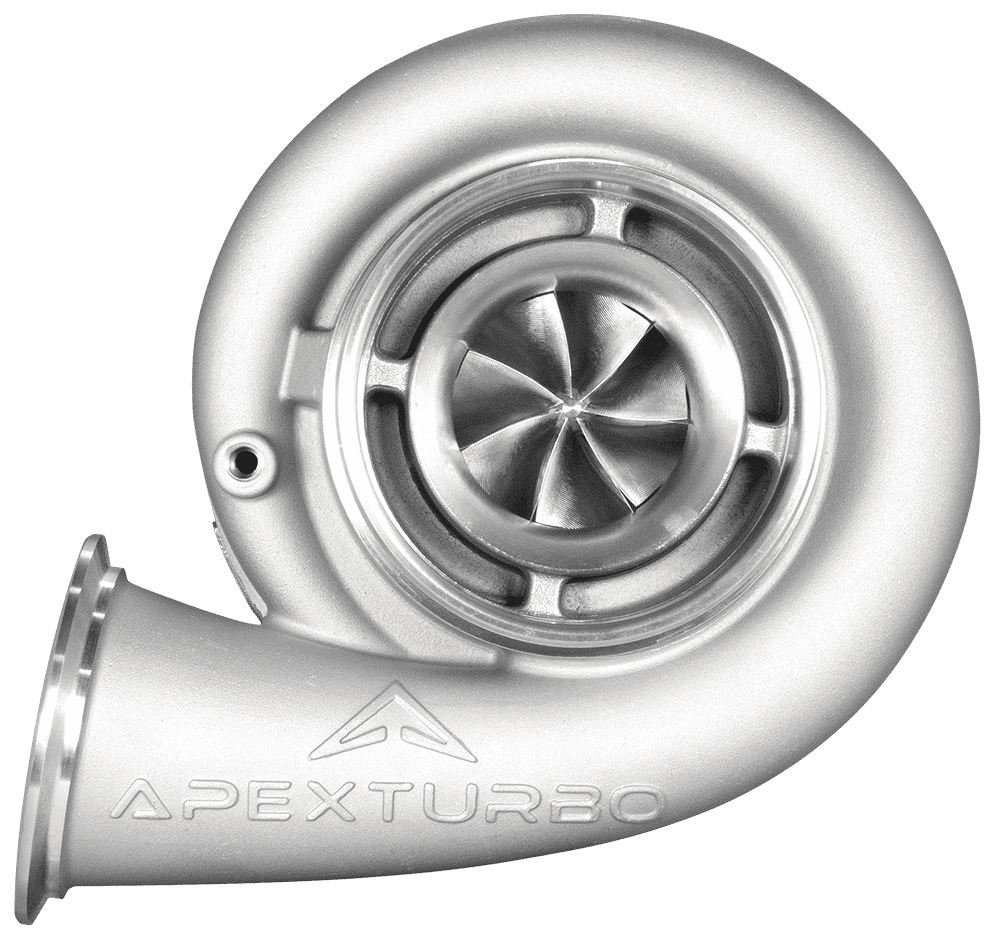

APX 7685

APX 7685

Price range: $4656 through $5381

Dyno and drag strip proven design featuring a 76.8 mm compressor wheel paired with 85 mm turbine wheel.

This T4 frame turbo is equipped with our patented triple ball-bearing design along with the Dual Apex Wheel™ Technology.

-

Specifications

Compressor Wheel

  • 76.8 mm inducer
  • 102.4 mm exducer

Turbine Wheel

  • 88.9 mm inducer
  • 85.2 mm exducer
Options

Turbine Housings available

T4 divided

  • 0.98 A/R
  • 0.01 A/R
  • 1.15 A/R
  • 1.16 A/R
  • 1.28 A/R*
  • 1.44 A/R

T4 undivided

  • 1.14 A/R
  • 1.27 A/R

Stainless Steel V-band

  • 1.28 A/R

*This option is the most common housing choice. We recommend this A/R.
